Fiber Ethernet Switch 8 Port Gigabit RJ45 + 4-Port 1G SFP + 2-Port 10G SFP

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-IMC2X4S8G

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : $19.9-399

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 5-12 working days

Packaging Details : Ethernet Switch Standard Export Package

Keywords : Unmanaged industrial ethernet switch

Optical Port : 4-Port 1G SFP, 2-Port 10G SFP

Ethernet Port : 8-Port RJ45 Gigabit

Input Power : 12~48VDC

Power Consumption : 8W Max

Weight : 0.55Kg

Contact Now

Ethernet Switch Industrial 8 Port RJ45 Gigabit + 4-Port 1G SFP + 2-Port 10G SFP
Fiber Ethernet Switch Advantages
► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)

Technical Indexes

Connector:

8 x RJ45

Optical Port:

4 x 1000Base-X SFP
2 x 10G Base-SR/LR SFP+

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

MTBF

> 200,000 hrs

Input Power:

12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power Status

Ethernet (Per Port):

Link/Activity

Fiber:

Gigabit SFP Port: F1~F4

10G SFP+ Port: G1, G2

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

Overview

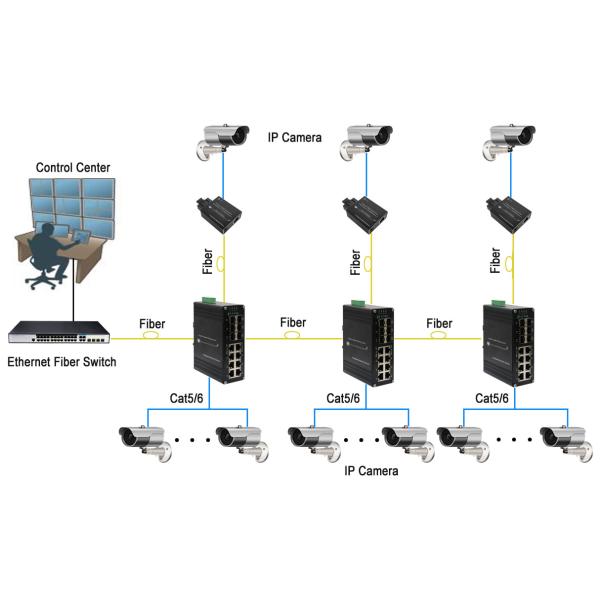

LNK-IMC2X4S8G Series is 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Fiber Ethernet Switch 8 Port Gigabit RJ45 + 4-Port 1G SFP + 2-Port 10G SFP
Fiber Ethernet Switch 8 Port Gigabit RJ45 + 4-Port 1G SFP + 2-Port 10G SFP

Ordering Information

Model

Description


LNK-IMC2X4S8G


Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch

SFP Options

SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
